ALUDES 150 ®

92% sintered alumina

Product with high resistance to abrasion, it can be used for: Grinding balls, tiles with thicknesses from 1.5 mm upwards. Shaped parts and pipes. Sintered alumina is a versatile, long-lasting product, which can be applied with adhesives or welding, depending on the working conditions.

Technical Data

CompositionDensity g/cm3Hardness averageThermal conductivityThermal expansionWorking temperature
AI2 O3 92%3.651500 Vickers21 W/m.K8.2×10.8K1
20 – 600ºC
1000ºC
maximum

Types

SQUARE TILES – rubber base
PANELS:
500X500 MM
RUBBER BASE:
4 mm
Square tiles
20×20 mm
SQUARE TILES – paper base
PANELS:
500X500 MM
Square tiles
20×20 mm
HEXAGONAL TILES – paper base
PANELS:
500X500 MM
Hexagonal Tiles
ø 20 circumference

Thicknesses TG CERAMIC 2, 4, 6, 10 and 12 mm

ThicknessSTANDARD TILES size mm
6 mm100×25100×50100×75100×10050×25150×50150×100
13 mm100×25100×50100×75100×10050×25150×50150×100
25 mm100×25100×50100×75100×10050×25150×50150×100
50 mm 100×50100×75100×10050×25150×50150×100
ThicknessTILES WITH HOLE size mm
13 mm100×50100×75150×50150×100
25 mm100×50100×75150×50150×100
50 mm100×50100×75150×50150×100

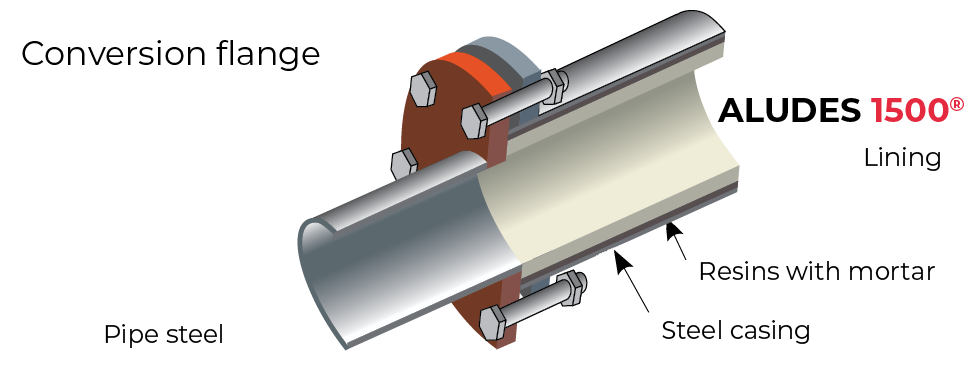

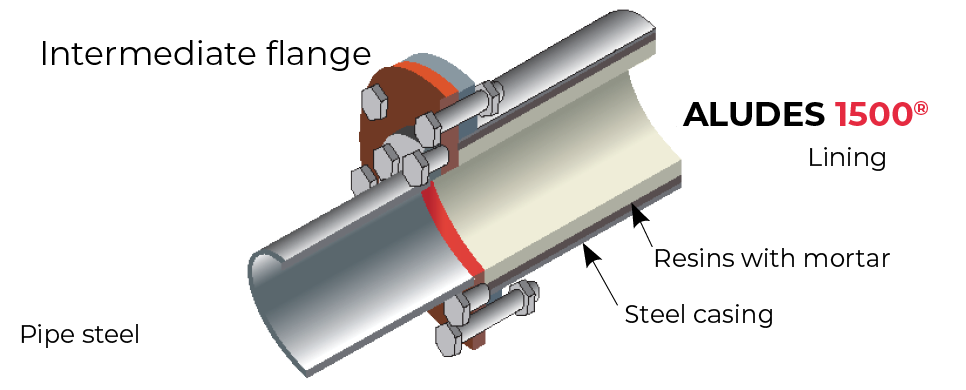

PIPES and possible curvature

PIPES

INTERNAL DIAMETRESFrom 40 to 250 mm

POSSIBLE ANGLES

Radius75010001500200025003000
Angles90º90º60º45º45º30º
60º60º45º30º30º15º
45º45º30º15º15º
