BASALDES 72 ®

Fused cast basalt

Created from selected natural basalt melted at 1300ºC which is subsequently recrystallised, giving it high resistance to abrasion, chemical attack and improved sliding.

Standard TILES
DIMENSIONS (mm)Thickness
(mm)
200 x 100
200 x 200
250 x 250
300 x 300
22, 30, 40, 50
Tiles with holes
DIMENSIONS
(mm)
Thickness
(mm)
200 x 100
200 x 200
250 x 250
30
Hexagonal tiles
ø 200 inscribed
Thickness 30 mm

On request: Radial Tiles and Industrial Floor Tiles with different patterns with anti-slip surface.

Technical data

HARDNESS
(average)
DENSITY
gr/cm3
ABRASION
RESISTANCE
THERMAL CONDUCTIVITYTHERMAL EXPANSIONWORKING TEMPERATURE
720 Vickers2,903-4 cm3 / 50 cm2
(max.)
(DIN 52108)
1,1-1,7 W/m.K9 x 10-6 K-1
2-400 ºC
Normal: 400 ºC
(max: 600ºC without sudden changes)

ANALYSIS (average)

AI2O2Zr O2SI O2Fe2O2 – Fe OCa OMg OK2ONa2OTI O2
Ca O43-55%9-14%10-12%8-12%3-5%3-5%2-3%

Tuberías

Internal diametersFrom 25 mm to 610 mm

Possibles angles

Radius75010001500200025003000
Angles90º90º60º45º45º30º
60º60º45º30º30º15º
45º45º30º15º15º

FLANGES TO ADAPT THE INSTALLATION

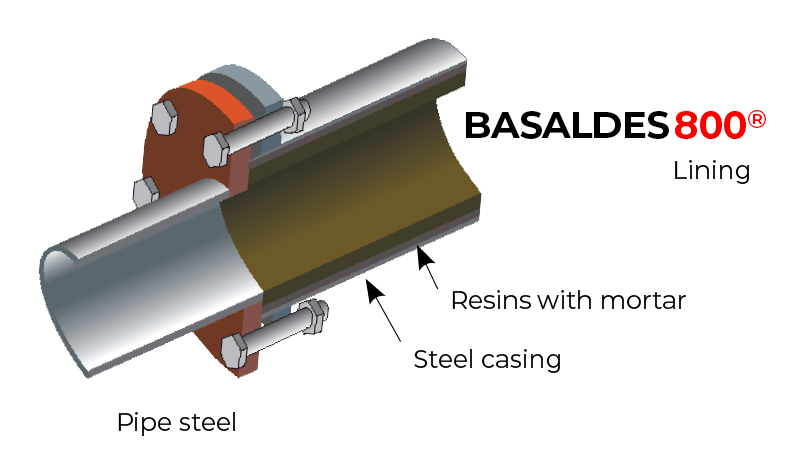

Conversion flange

Interior blind machined flange. Diameter to fit existing flange.

Intermediate Flange

Flange with holes for screwing the ceramic pipe and with screw. Blind holes for screwing into the installation to the existing flange.
